Locking pin BLC8R32N
Locking Pin BLC8R32N is an Imperial Double Acting Push Button R-Handle. The Balls of BLC8R32N can be unlocked by pushing the activation button. This is an old part number for Anemo. We recommend to switch to our new SBP part number:
SBPR2I50RH320SS
.jpg)
.jpg)

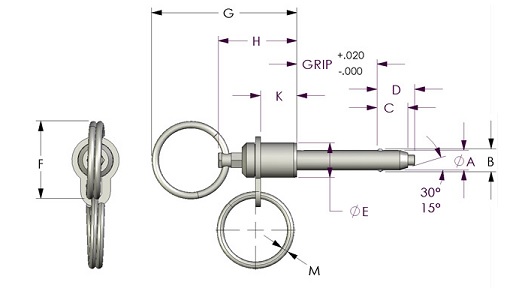

| Measurements of BLC8R32N (In inch) | |
|---|---|
| ØA Max/Min | 0.4985 - 0.4970 |
| B +/- .005 | 0.594 |
| C +.000/-.060 | 0.59 |
| D +.000/-.060 | 0.78 |
| ØE Max/Min | 0.755 - 0.640 |
| F Max/Min | 2.250 - 2.125 |
| G Max/Min | 1.655 - 1.500 |
| H Max/Min | 2.060 - 1.960 |
| J Max/Min | 1.270 - 1.180 |
| K Max/Min | 1.12 - 0.88 |
| M +.030/-.000 | 0.2 |
| Materials of BLC8R32N | |
|---|---|
| Body | Stainless steel |
| Handle | Stainless steel |
| Button | Aluminium |
| Spindle | Stainless steel |
| Spring | Stainless steel |
| Balls | Stainless steel |
| Ring | Stainless steel |
