Locking pin BLS3RS72S
Lock Pin BLS3RS72S is an imperial Push Button, it has a long lead time of 45+ weeks. We can also offer an alternative to BLS3RS72S which has a lead time of 8 - 11 weeks: SBPBI18RH720SS
.jpg)
.jpg)

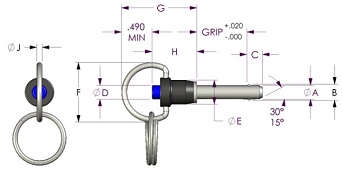

| Dimensions of BLS3RS72S | |
|---|---|
| ØA (inch) | 0.1885 |
| B (inch) | 0.22 |
| C (inch) | 0.26 |
| ØD (inch) Min/Max | 0.250 - 0.310 |
| ØE (inch) Min/Max | 0.380 - 0.500 |
| G Max (inch) | 1.27 |
| J (inch) Min. | 0.7 |
| K (inch) Max. | 0.34 |
| L (inch) Min. | 1.72 |
| Calculated Double Shear Strength Min. Lbs | 4600 |
| Types of metal BLS3RS72S | |
|---|---|
| Body | Steel |
| Handle | Aluminium |
| Button | Aluminium |
| Spindle | Stainless steel |
| Spring | Stainless steel |
| Balls | Stainless steel |
| Ring | Stainless steel |
We offer Lock Pin BLS3RS72S as factory new.
