Ball lock pin BLS8TA70S
Quick release ball lock pin BLS8TA70S is an imperial Push Button, it has a long lead time of 45+ weeks. We can also offer an alternative to BLS8TA70S which has a lead time of 8 - 11 weeks: SBPBI50TH700SS
.jpg)
.jpg)

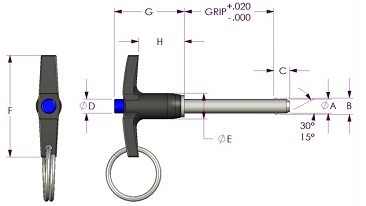

| Sizes (inch) BLS8TA70S | |
|---|---|
| ØA (inch) | 0.4985 |
| B (inch) | 0.594 |
| C (inch) | 0.46 |
| ØD (inch) Min/Max | 0.435 - 0.565 |
| ØE (inch) Min/Max | 0.630 - 0.800 |
| ØF (inch) Min/Max | 2.220 - 2.345 |
| G Max (inch) | 1.6 |
| H (inch) Min. | 0.85 |
| Calculated Double Shear Strength Min. Lbs | 32800 |
| Specific Materials BLS8TA70S | |
|---|---|
| Body | Steel |
| Handle | Aluminium |
| Button | Aluminium |
| Spindle | Stainless steel |
| Spring | Stainless steel |
| Balls | Stainless steel |
| Ring | Stainless steel |
We offer Quick release ball lock pin BLS8TA70S as factory new.
